NH90 TTH
TACTICAL TRANSPORT HELICOPTER
NH90 TTH

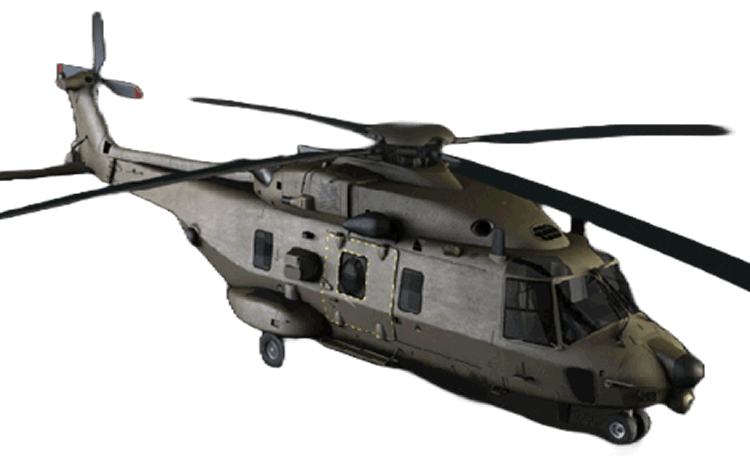

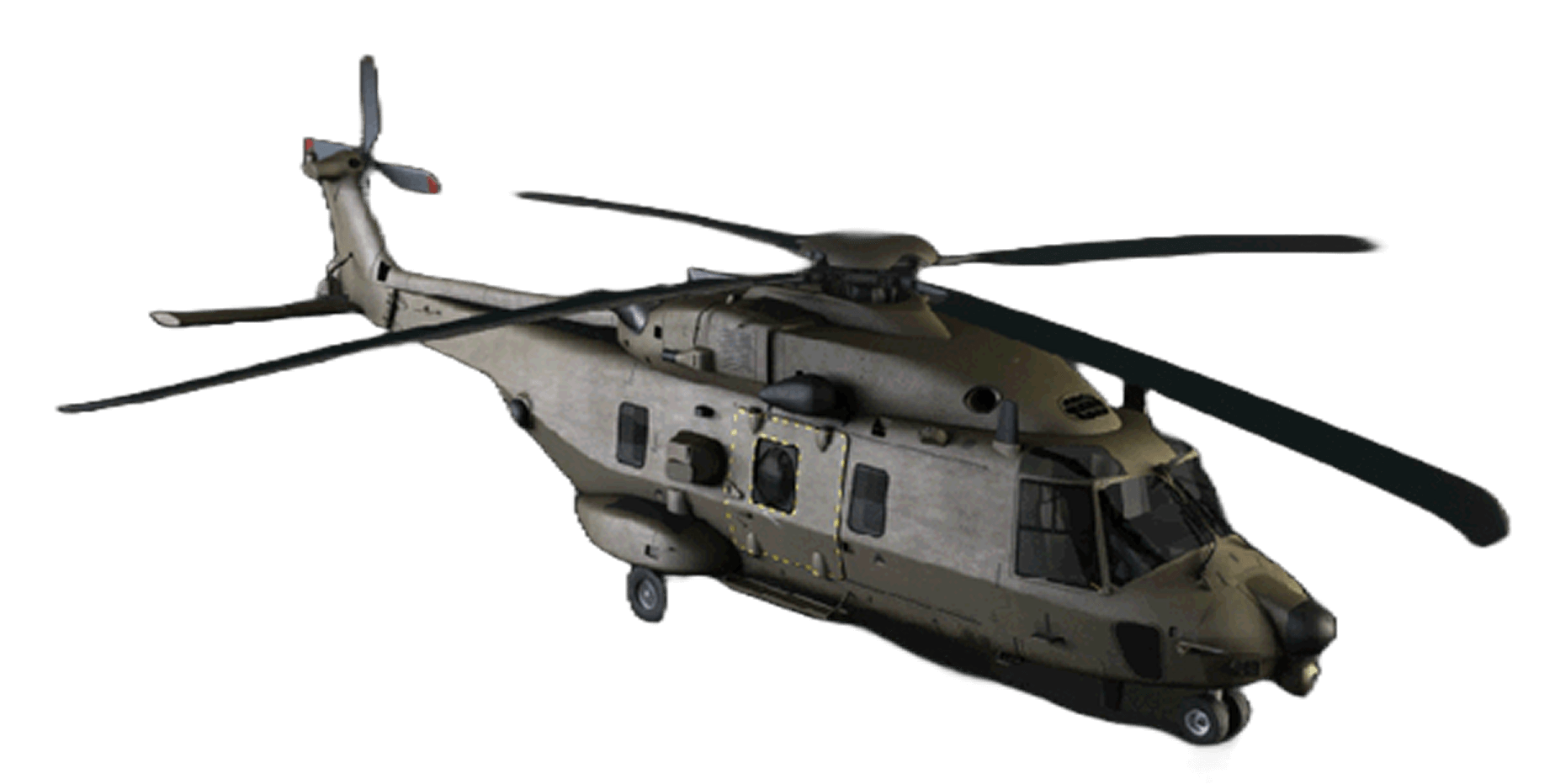

The NH90 TTH can meet the most demanding military standards. It has been designed with safety and versatility in mind in order to fulfill the most challenging missions in the harshest weather conditions for the 21st century. The NH90 features a redundant fly by wire system, a full composite corrosion free airframe,two powerful engines, a fully integrated weapon system as well as a wide cabin easily reconfigurable.
Enhanced Reliability, Availability, Maintainability, Testability, and Supportability Characteristics
Low Detectability, Reduced Vulnerability NBC Protection, Crashworthiness (Crew & Troops)
Complimentary Roles : Utility support including disaster relief | Casualty Evacuation (CASEVAC) | Medical Evacuation (MEDEVAC) Combat Search and Rescue | Special Operations including Counter Terrorism | Electronic Warfare | Airborne Command Post | VIP Transport.
- Troop transport of up to 20 fully equipped troops.
- Logistic and Utility transport of internal and external loads.
- Search and Rescue (SAR).
To fulfill a wide spectrum of missions, this new-generation helicopter can be equipped with a comprehensive range of equipment.
- Armoured crashworthy pilot/co-pilot seats.
- Foldable and crashworthy troop seats.
- NATO standard stretchers.
- Cabin comfort seats.
- Cargo hook (4,000 kgs) with dynamometer and camera.
- Single or dual rescue hoist with 270 kgs capability.
- Heavy stores carriers (port and starboard) 400 kgs or 600 kgs each.
- Internal auxiliary fuel tanks.
- External auxiliary fuel tanks.
- Fast rope/rappelling system.
- Emergency flotation system.
- Manual blade and tail folding system.
- Door mounted pintle machine gun (7.62 mm or 12.7 mm).
- Armour protection for cabin (modular).
- Infra-red suppressor system.
- Wire strike protection system.
- Enhanced Ground Proximity Warning System.
- Piloting FLIR system.
- Helmet Mounted Sight and Display.
- Weather radar.
- Digital Map Generator System.
- Self protection suite.
- Emergency Locator System.
- Personal Locator System.
- Hover In-Flight Refuelling.
The NH90 offers high levels of survivability, protecting crews and bringing them home safely. The helicopter features reduced signatures and redundant main systems, alongside an electronic protection suite that provides advanced self-protection measures, while giving crews a full picture of operational threats.
- Ballistic tolerant design (primary systems).
- Armoured protection of people and systems.
- Multi-redundant systems.
- Reduced signatures (IR suppressors, low cross section, low noise).
- Advanced self protection suite (Laser Warning Receiver, Radar Warning Receiver, Missile Launch Detection System, Chaff/Flare Dispensing System).
- Wire cutters.
- Ground Proximity Warning System (GPWS).
- Protection against Electro Magnetic Interference (EMI).
The NH90 features a wide, unobstructed cabin that can be easily reconfigured for multiple missions. The helicopter is capable of transporting up to 20 fully-equipped troops or a mixture of military equipment and personnel.
